NYLON XP 8x52 (100p)
Generic code 218874
- Universal dowel 8x52 polyamide with 2 segments and collar.
Applications
- Intended use: Solid and hollow materials with prior testing.
Advantages
- Universal anchor with flange.
- 4 anti-rotation fins.
- Perfect guidance of the screw in the plug.
- High quality nylon, resistant to external attack.
Technical characteristics
| With flange |
True |
| Type of flange |
Standard |
| Installation mode |
Hammer laying |
| Supporting material |
Solid concrete block Solid brick with prior testing Natural stone with prior testing Hollow brick with prior testing Plaster block with prior testing Plasterboard Concrete Hollow concrete block |
| Product material |
PA6 Polyamide |

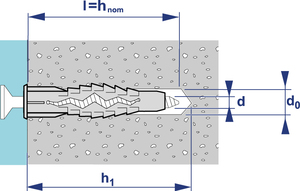

| Support drilling diameter |
8
mm |
| Length |
52
mm |
| Minimum drilling depth |
65 |
| Minimum depth of implementation |
52 |
| Standard product colors |
Grey |
| Content |
100 dowels Ø8x52 polyamide, alone. |
| Type of load |
Light load |
| Outside body diameter |
8
mm |
| Compatible with |
Wood screws Ø4 to 6 |
Sold by box of 100 pieces
