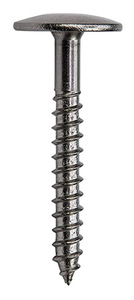

TORX PANEL BOIS TB16 A2

  • A2 stainless-steel self-drilling screw, pointed tip, Ø16 natural domed cylindrical head, Torx 20, for wood substrate.
See the 3 generic codes
Interested in this product ? Contact us

Select item to add to the quote

Select item(s) to add to the quote

Designation Code Color Quantity
Cancel
Access the cart

Applications

  • Fastening large format TRESPA panels, thickness 10 or 13 mm.
  • Fixing of cladding panels.

Advantages

  • Facing screws with aesthetic head: domed cylindrical head.
  • Screw can be painted in all RAL colours.
  • Vulca sealing washers can be added on request.

Technical characteristics

Type of the screw tip Tapered tip
Type of thread Partial threaded
Pre-drilling With pre-drilling
Product material A2 Stainless steel
Head shape Domed cylindrical head
Pattern Torx
Pattern Torx TX 20
Laquering Natural head
Resistance to corrosion 30 Kesternich cycles
Installation mode Installation with torx screwdriving
Supporting material Wood
Diameter of the head 16 mm
Thread pitch 2,25 mm
Head height 2,5 mm
Minimum clamping capacity 0 mm
5 features on 15
3 generic codes
Filter:
L
CS mini
CS Maxi
Generic code L  (mm)
Length
CS mini  (mm)
Minimum clamping capacity
 CS Maxi  (mm)
Maximum clamping capacity
33132TORX PANEL BOIS TB16Tx20 A2 4.8x38 38 0 12
See detail
33189TORX PANEL WOOD TB16/Tx20 A2 4.8x60 60 0 16
See detail
33191TORX PANEL BOIS A2 5.5x38 38 0 12
See detail
 generic codes on
