CANALZAC 4 TH12 2C 6.3x105G30
Generic code 339900
- Self-drilling screw 6.3x105 with wings hex head 12 zamac natural mounted with washer Ø30 galvanised steel/EPDM, for steel support 4 mm max - supracoat 2C body.
Interested in this product ? Contact us
Applications
- Fastening of half-round tile support panels (PST) on steel frames.
Advantages
- The Zamac post-moulding enables a strong tightening torque.
Technical characteristics
| Type of the screw tip |
Self-drilling tip with wings |
| With flange |
True |
| Flange head diameter |
16
mm |
| Type of thread |
Threaded with Reamer |
| Drilling capacity mini |
1.5 |
| Pre-drilling |
Without pre-drilling |
| Product material |
2C Supracoat coated steel |
| Drilling capacity maxi |
4 |
| Head shape |
Hex. Head |
| pattern hexagonal |
TH 12 |
| Material of the screw head |
Overmolded zamac |
| Laquering |
Natural head & washer |
| With washer/ seal |
True |
| Type of the washer |
Vulca washer |
| Material of the washer/ Seal |
Galva/ EPDM |
| Outside diameter of the washer |
30
mm |
| Thickness of the flange |
3.8
mm |
| Resistance to corrosion |
15 Kesternich cycles |
| Guaranteed against corrosion for 20 years |
True |
| Installation mode |
Installation with hexagonal screwdriving Installation by screwdriving with bit |
| Supporting material |
Steel |
| Diameter on thread |
6.3
mm |
| Thread pitch |
1.81
mm |
| Length |
105
mm |
| Head height |
9.3
mm |

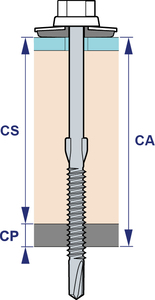

| Minimum clamping capacity |
56
mm |
| Maximum assembly capacity |
82
mm |
| Length of the threaded part |
40
mm |
5 features on 28
Sold by bag of 100 pieces
| Designation | Article codes | Color label | Quantity |
Our program of screws and lacquered accessories offers more than 2000 colors for our roofing / cladding / facade applications. Discover the width of our color palette with our lacquering expertise.
- Used with a HH12 screwdriving socket.
